FRP Skylight Panel-1

• Material: Fiberglass Reinforced Plastic

• Thickness: 1.2/1.6/1.8/2.2/3.0/4.0

• Color: Clear or customized

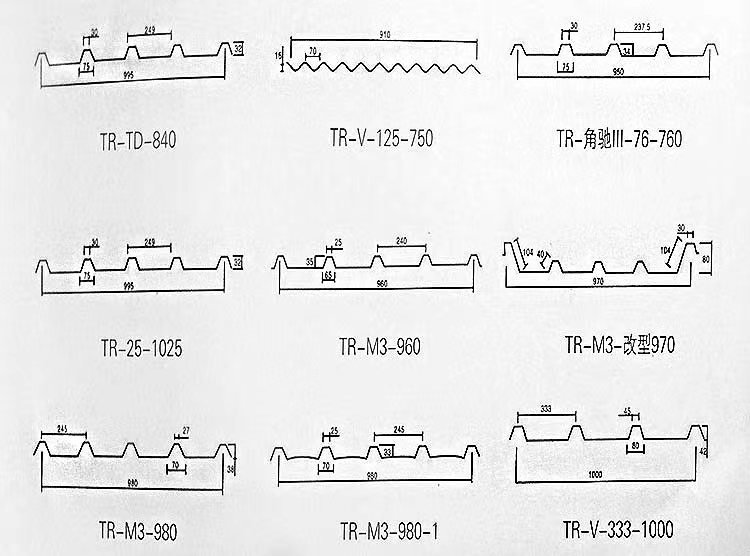

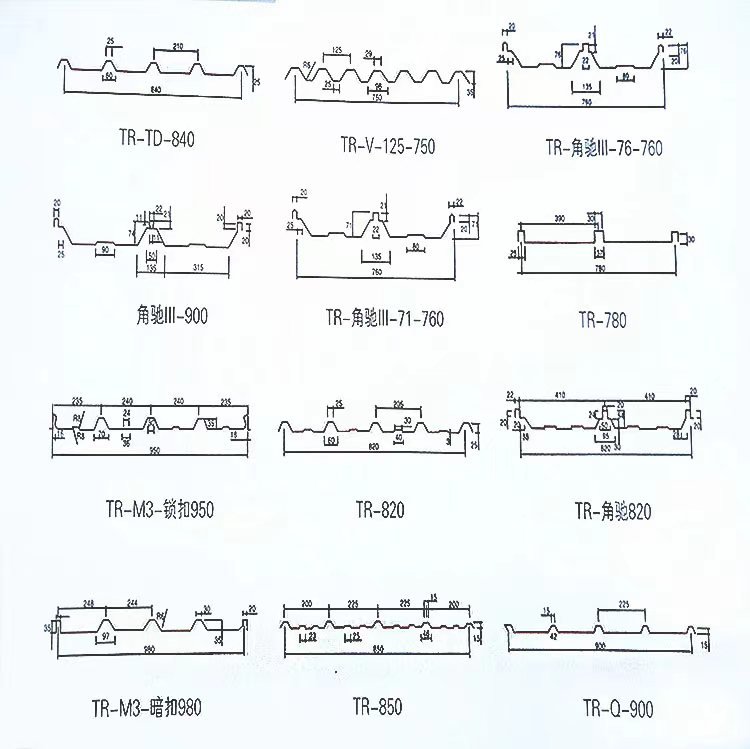

• Popular Type: V720/V750/V840/V900

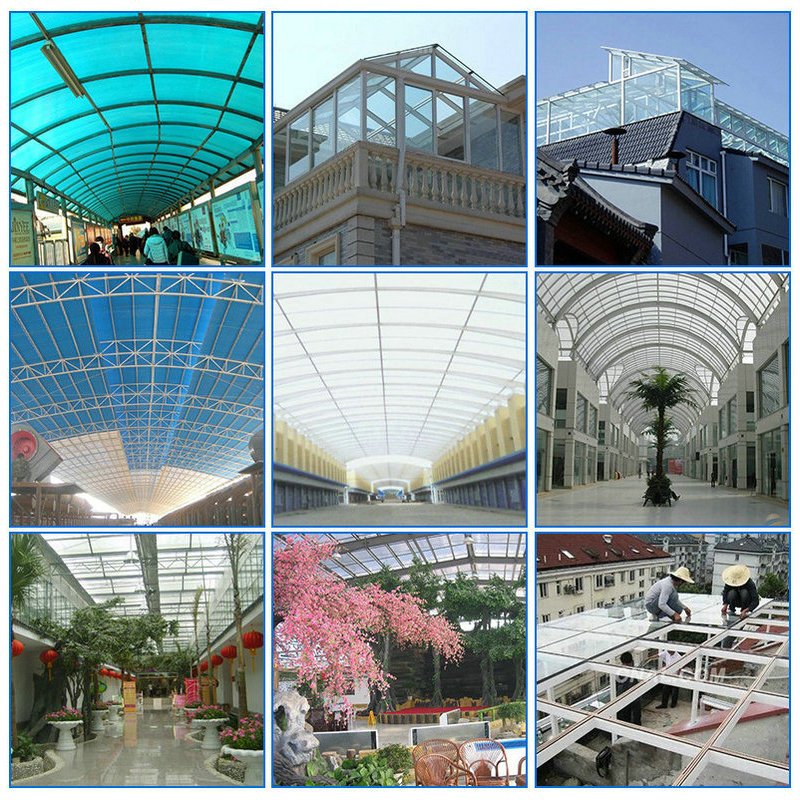

• Usage: wall and roof translucent

• FOB Qingdao: USD 6.5-10.5/SQM

• Leading time: 20 days

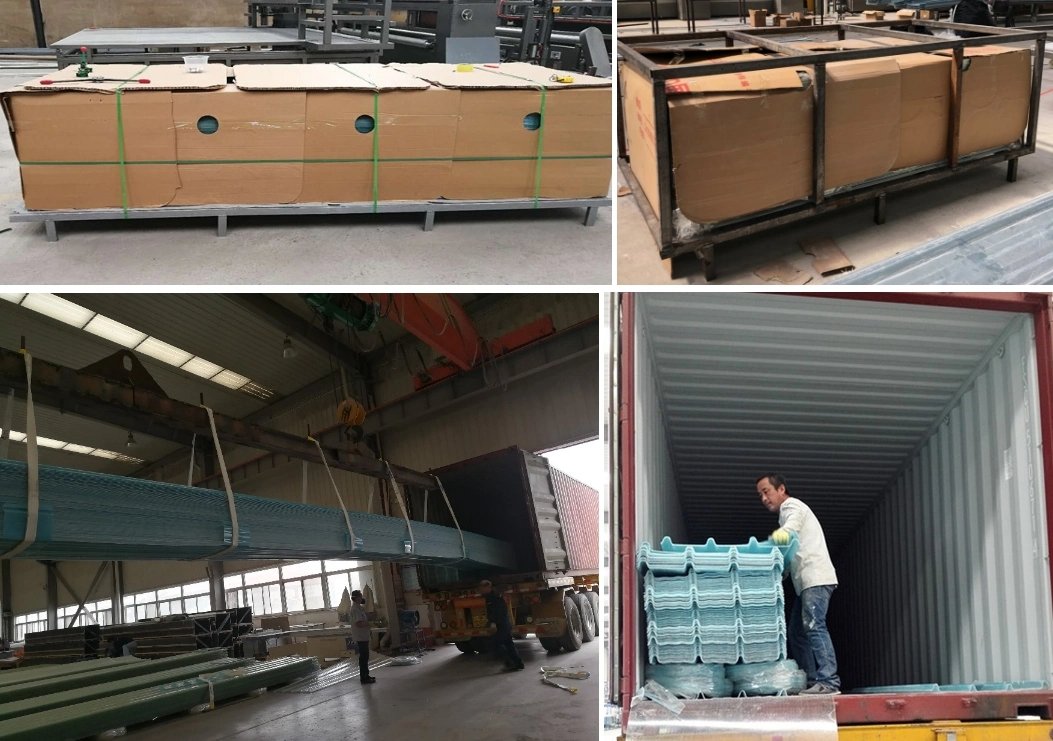

• Package: Stretch film wrapped + Steel strap bundled

INQUIRE

Add To Inquire Cart

DETAILS

◆ FRP Roof Sheet Skylight Sheet advantages:

1.save cost
2. Loading bearing: It can load 150 kg per square meter evenly;
3. Light weight: 5-6.0kg/square meter;
4. Water resistance: 100%;
5. Fire resistance: Self-extinguish off fire;
6. Anti corrosion;
7. Impact resistance and low temperature resistance;
8. Sound and heat insulation;
9. Small Thermal expansivity;
10. Environmental protection and energy conservation;

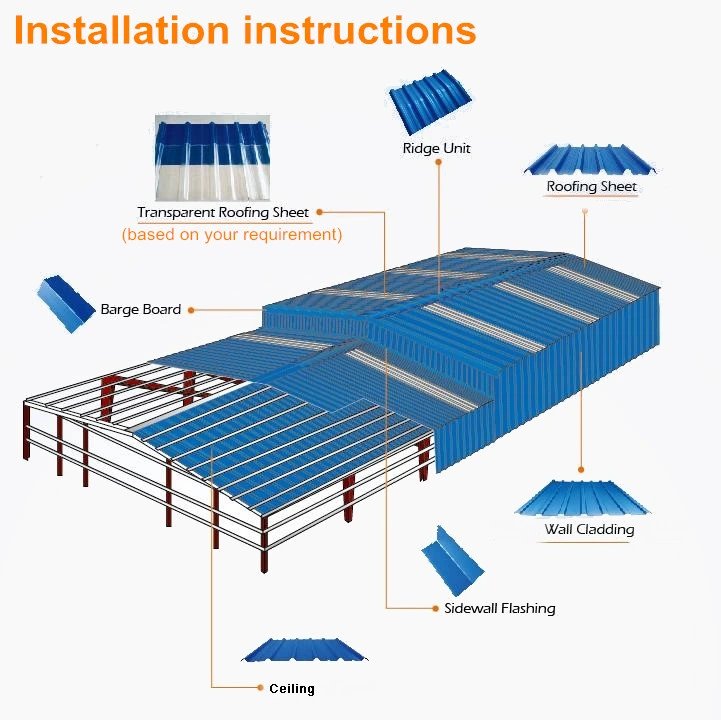

11. Easy to install

◆ FRP Roof Sheet Skylight Sheet description:

Product Name	Fiberglass Skylight Roofing Sheet
Resin Ingredient	Advanced benzene-----new neopentyl glycol anti-ageing DTM-1 resin.
Surface Treatment	Surface applying Morplated anti-ageing glue (80 µm thickness or so) and pastes Melinex 301.
Glass Fiber	Adopting Taian high- quality glass fiber, the content no less than 30%.
Unit Weight	1800g/m² 2400g/m² 3050g/m²
Nominal Thickness	1.2mm 1.5mm 2.0mm. 3.0mm. 4.0mm
Heat Resistance Limit	-60 to +130
Light Transmittance	75%±2% ( light green) 53%±2% (cream white)
Anti- ultraviolet Rate	99.9%
Tensile Strength	100Mpa
Flexural Strength	180Mpa
Cracking Elongation Rate	1.9%
Barcol Hardness	≥50
Thermal Expansion Coefficient	2.2×10¯5cm/cm/
Thermal Conductivity	0.18w/m° k
Warranty	10 years
