Steel Broiler House-1
• Steel Grade: Q235B/Q355B
• Surface treatment: 100% Hot dipped galvanized treatment/Painting
• Building Dimension: 16m W X 68m LX 4.5m H
• Design Wind Load: 100km/h
• Roof Slope: 20%
• Feeding Chicken Number: 20,000
• FOB Qingdao: USD 900~1200/Ton
• MOQ: 500 SQM
• Factory Capacity: 1500-2000 tons/month
• Leading time: 20 ~45 days
• Packing: Steel pallet package for container delivery
Steel structure poultry broiler farm house shed chicken house
◆ Product Description
1. Design Option:
A. We design as the request from clients usually.
B. However, the Normal Width of Poultry farm as 12-22m, the most economic width as 16m. Length usually max. 160m. And Height as 2.2-2.5m or 2.5-4.5m
For example, the Poultry farm with 10,000 broilers, the building usually 12X60m or 16X45m. 40,000 broilers, the building size 16m X 140m will be perfect choice.
2. Types of poultry farm building:
A: Open wall type. It can save the cost of shed, but can not control the temperature very well.
B: Half open wall type : you can open the curtain, when climate is good. You can close the curtain, when climate is not good. But this tpye chicken farm building can not be used in cold area.
C: Enclosed wall type: This design can control temperature well and reduce the harm of climate changing to chickens. But the cost is higher.

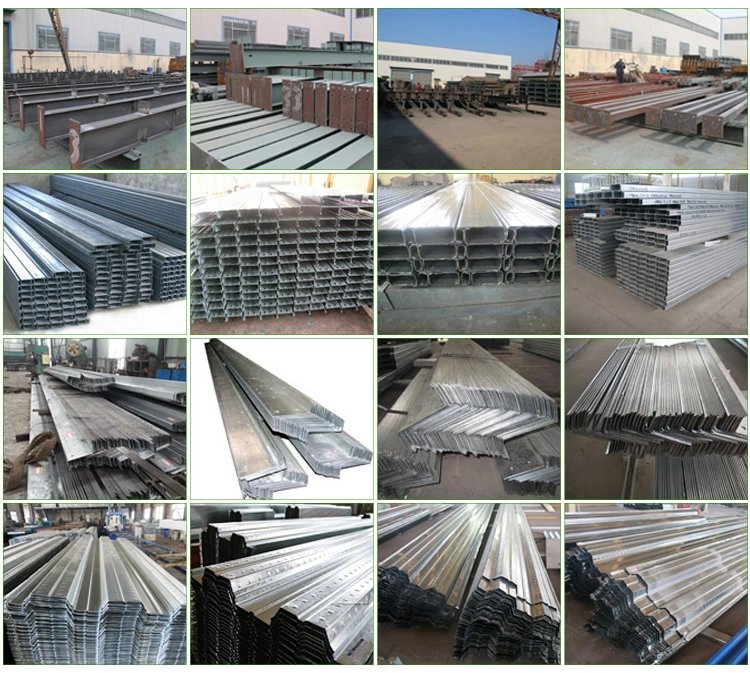

◆ Specification of steel structure poultry broiler farm house shed chicken house
column and beam
material S355JR /S235JR H section steel ( painted or galvanized)
c or z section steel, size from c120~C320, z100~Z200
colorful corrugated steel sheet ,sandwich panels with eps, rockwool, fiber glass, pu etc.
steel angle, steel pipe, steel rod.
Galvanized gutter, SS gutter, Color Coated Steel Gutter
pvc pipe /Aluminum Pipe
sliding sandwich panel door or rolling metal door
pvc or aluminum alloy windows
anchor bolt,high strengthen bolt, normal Bolt, skylight Belts, ventilators, etc.
◆ Our Advantages
1. We design different types and sizes building according to customer's needs, large or small, wide span: single span or multiple spans, the max span is 36m without middle column.
2. We proposal with low cost and maintenance: unit price range from USD25/m2 to USD50/m2 according to customers request.
3. The steel structure building fast construction and easy installation: time saving and labor saving, all the items are factory-made,pre-cut,pre-welded, pre-drilled,pre-painted or HDG in advance for saving cost and time.
4. Reduced construction waste, long using lifespan: up to 50 years.
5. We are using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc software to design different buildings according to request of Clients. We service clients from design, produce, delivery and election.
We can design factors with Max. Wind 280KM/H, Earthquake Class C and Roof Snow Load 200kg/SQM.
6. Nice appearance and , Earthquake Resistance, Sound Insulation, Heating Insulation treatment.
7. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.
◆ Factory Overview
Factory Established in 2008
Company Area more than 40,000 SQM
Workshop More than 25,000 SQM
2 Sets CNC Flame Cutting Machines
5 Lines for builtup H profiles
3 Lines for C Girt or Z purlins
3 Lines for Corrugated Wall or Roof Metal Sheet
3 Lines for Sandwich Panel Sheet---Wall, Roof, EPS, Glasswool, Rockwool, XPS, etc
1 Set Shot Blasting Machine for Painting Pretreatment.

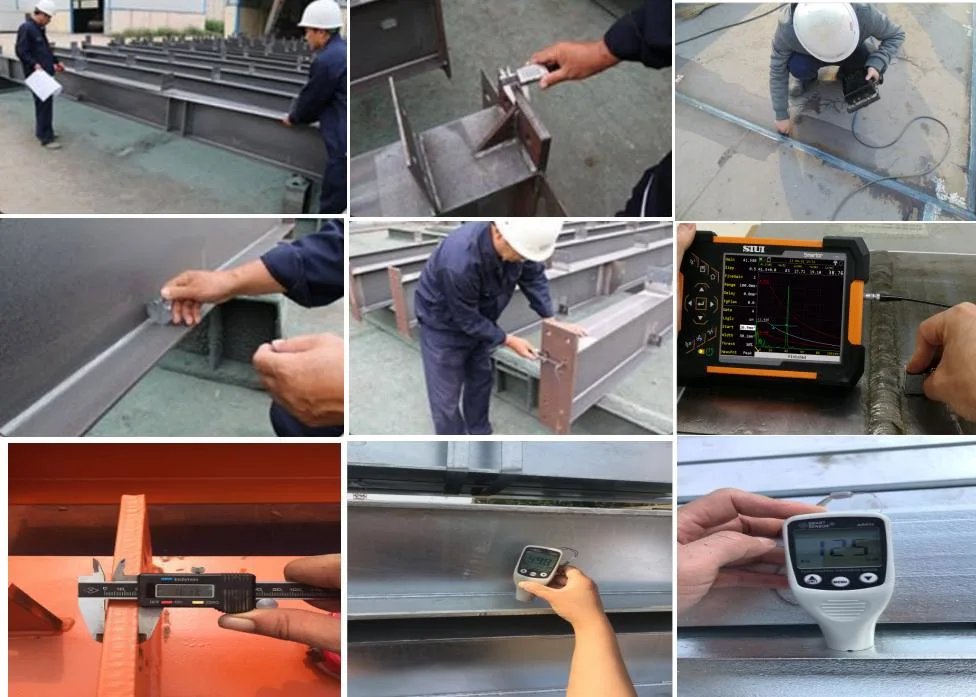

◆ Quality Control
1. QC processing:
1. Every 3 months meeting for Quality Audit to solve the weakness during processing and procedures
2. Every 6 months meeting for employee training.
3. Producing as to the International Steel Structure Standard with ISO 9001 Quality Control System
4. Each project, every 6 months, connecting with clients for feedback and complaints, then improve the quality control actions.
5. Quality inspection report for every process during production. Ensure 100% good quality products.
◆ Company Certificate of us:
◆ After Sales Service
1. Offer guide installation service.
2. One-stop shop steel structure building service
3. Free design service.
4. Expert oversea installation team service.
◆ Here are some successfully projects by us:
◆ Packaging & Shipping
◆ Our Customers
We serving the customer from UK, Poland, Luxemburg, France, Mozambique, Reunion Island, Botswana, Zimbabwe, Angola, Dubai, UAE, Russia, Singapore, Australia, New Zealand, Indonesia, Fiji, Sri Lanka, USA, Canada, Chile, Saint Lucia, Mexico, Chile etc. more than 40 countries in the past 10 years.
Q:Can you provide product catalog and quotation?
A: It is better if you can provide drawings(PDF or CAD),we will give you complete your drawings offer. or
We can design as the request from you, then proposal.
Q:what is you used drawing format?
A: PDF or DWG as AUTO CAD file
Q:What is the minimun order quantity?
A:No MOQ limited.
Q:What is your packing?
A:Standard export package for container transportation by sea and can be packed as customer's requested.
Q:How long is the delivery time?
A:According to project situation, usually within 30 days after receiving deposit.
Q: Do you offer guide installation service?
A: yes, we can. we can send engineer to your project site for guide installation or arrange the installation team to help erecting the building if necessary.
Q: are you factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us
